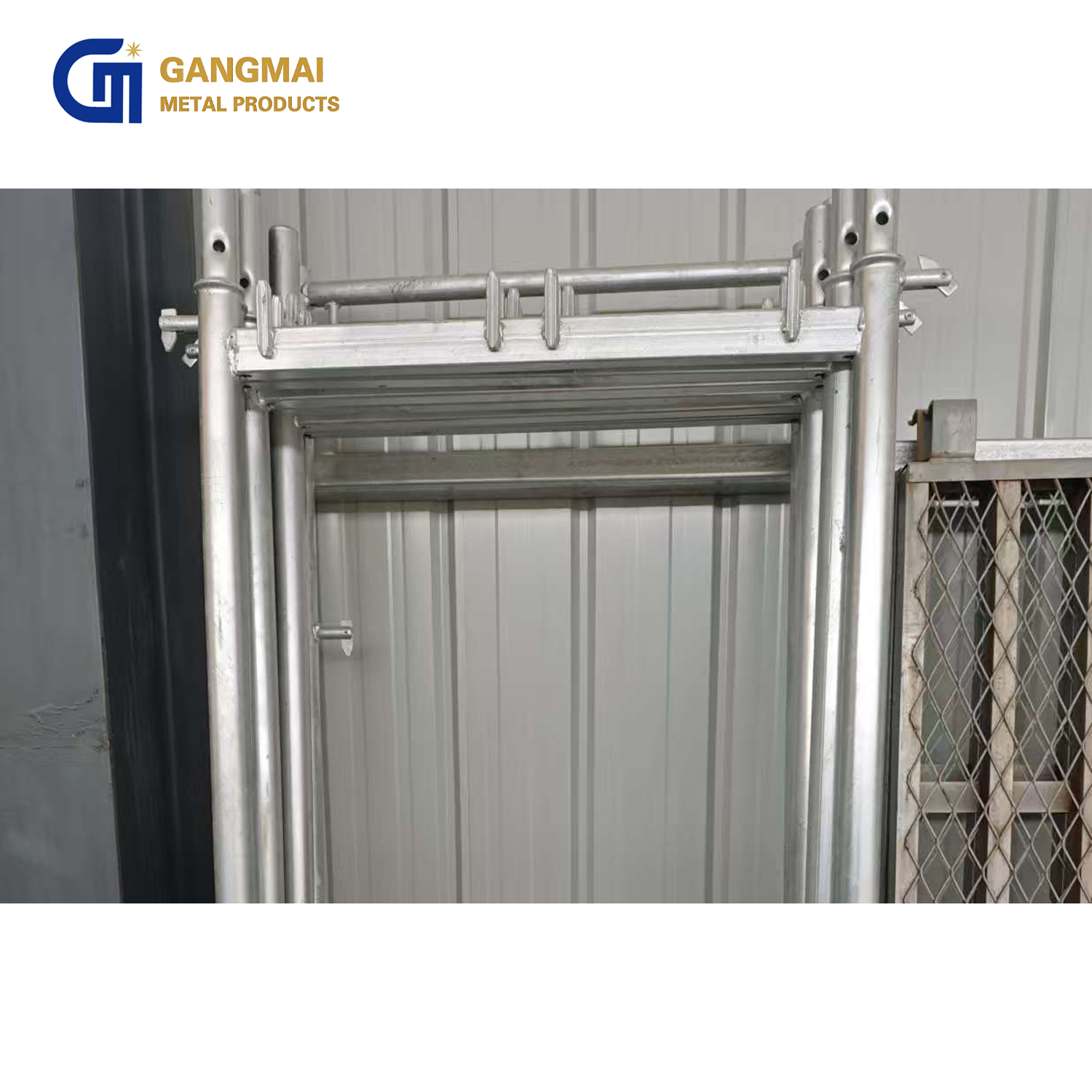

Reliable Platform Mobile H Frame Scaffold/scaffolding/falsework System

GET A FREE QUOTE

Product Parameters

Product Name	Ring Lock Scaffolding / Cuplock Scaffolding / Frame Scaffolding
Model/Series	Standard Type / Heavy Duty Type / Custom Type
Material	Q235B / Q355B Mild Steel
Surface Treatment	Hot Dip Galvanized / Painted / Electro-galvanized
Tube Diameter & Wall Thickness	Vertical Post: Φ48.3mm × 3.25mm
	Horizontal Ledger: Φ48.3mm × 2.75mm
	Diagonal Brace: Φ42mm × 2.75mm
Vertical Post Length	0.5m, 1.0m, 1.5m, 2.0m, 3.0m Can be customised according to requirements
Horizontal Ledger Length	0.6m, 0.9m, 1.2m, 1.5m, 1.8m
Connection Method	Pin-lock Connection / Cuplock Connection / Frame Connection
Load Capacity	Single Post Ultimate Load: ≥150kN (approx. 15 tons)
Safety Standards	Compliant with EN 12810 / EN 12811 or GB Standards
Main Components	Vertical Post: Main pillar with connecting plate
	Horizontal Ledger: Horizontal connecting member
	Diagonal Brace: Diagonal support for overall stability
	Adjustable Base Jack: Base for height adjustment
	Adjustable Top Jack: Top member supporting formwork or structure
	Walkway / Steel Plank: Walkway for construction personnel
	Ladder / Staircase: Vertical access
Applications	1. High-rise building exterior wall construction
	2. Bridge formwork support
	3. Interior renovation of large venues
	4. Shipbuilding and repair in shipyards
	5. Stage lighting frame construction
